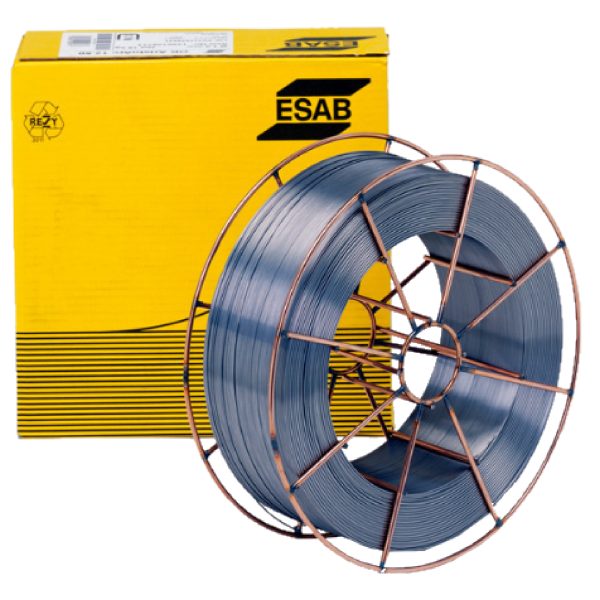

OK Autrod 5356
รายละเอียดสินค้า
วีดีโอ
รายละเอียดสินค้า
OK Autrod 5356
| Classifications | JIS Z 3232 : A53556 SFA/AWS A5.10 : ER5356 EN ISO 18273 : S Al 5356 (AlMg5Cr(A)) |
| Approvals | ABS : ER 5356 BV : WB CE : EN 13479 CWB : ER5356 DB : 61.039.01 DNV-GL : 5356 JIS : JIS Z 3232 LR : WB/I-1 RINA : WC (*) VdTÜV : 04664 |
Approvals are based on factory location. Please contact ESAB for more information.
| Alloy Type | AlMg 5 |
Typical Tensile Properties
| Mn | Si | Cr | Al | Cu | Zn | Fe | Mg |
| 0.13 | 0.05 | 0.12 | 94.56 | 0.01 | 0.01 | 0.13 | 4.9 |
Deposition Data
| Diameter | Current | Voltage |
| 0.8 mm | 60-170 A | 13-24 V |
| 0.9 mm | 60-170 A | 13-24 V |
| 1.0 mm | 90-210 A | 15-26 V |
| 1.2 mm | 140-260 A | 20-29 V |
| 1.6 mm | 190-350 A | 25-30 V |
| 2.4 mm | 280-400 A | 26-31 V |
