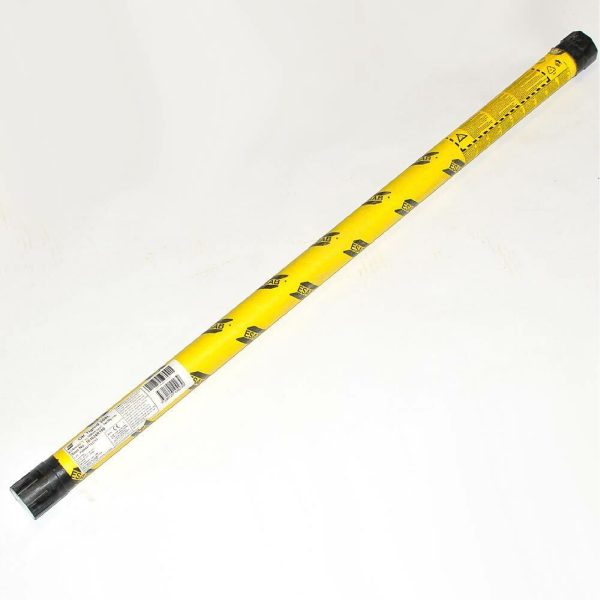

OK Tigrod 308L
| Classifications | EN ISO 14343-A : W 19 9 L SFA/AWS A5.9 : ER308L Werkstoffnummer : ~1.4316 |
| Approvals | CE : EN 13479 CWB : ER308L DNV-GL : VL 308 L NAKS/HAKC : 1.6-2.4 mm VdTÜV : 04269 |
Approvals are based on factory location. Please contact ESAB for more information.
| Alloy Type | Austenitic (with approx. 8 % ferrite) 19% Cr – 9% Ni – Low C |
Typical Wire Composition %
| C | Mn | Si | S | P | Ni | Cr | Mo | Cu | N | FN WRC-92 |
| 0.02 | 1.9 | 0.4 | – | – | 9.8 | 19.8 | 0.20 | 0.15 | 0.05 | 9 |
Typical Weld Metal Analysis %
| C | Mn | Si | S | P | Ni | Cr | Mo | Cu | N | FN WRC-92 |
| 0.01 | 1.8 | 0.4 | 0.015 | 0.020 | 10 | 20 | 0.1 | 0.1 | – | – |
Typical Tensile Properties
| Condition | Yield Strength | Tensile Strength | Elongation |
| As Welded | 440 MPa | 580 MPa | 36% |
Typical Charpy V-Notch Properties
| Condition | Testing Temperature | Impact Value |
| As welded | 20 °C | 170 J |
| As welded | -80 °C | 135 J |
| As welded | -196 °C | 80 J |
